This is a bolt-in engine mount kit for installing a 12v or 24v Cummins into a 1980-1997 Ford F250/350 and utilize the factory 2nd gen Cummins motor mount bushing. This is a great option if your donor engine came with 2nd gen motor mounts on the block. These mounts will position the engine to allow room for the factory Dodge mechanical fan.
Available in two options:

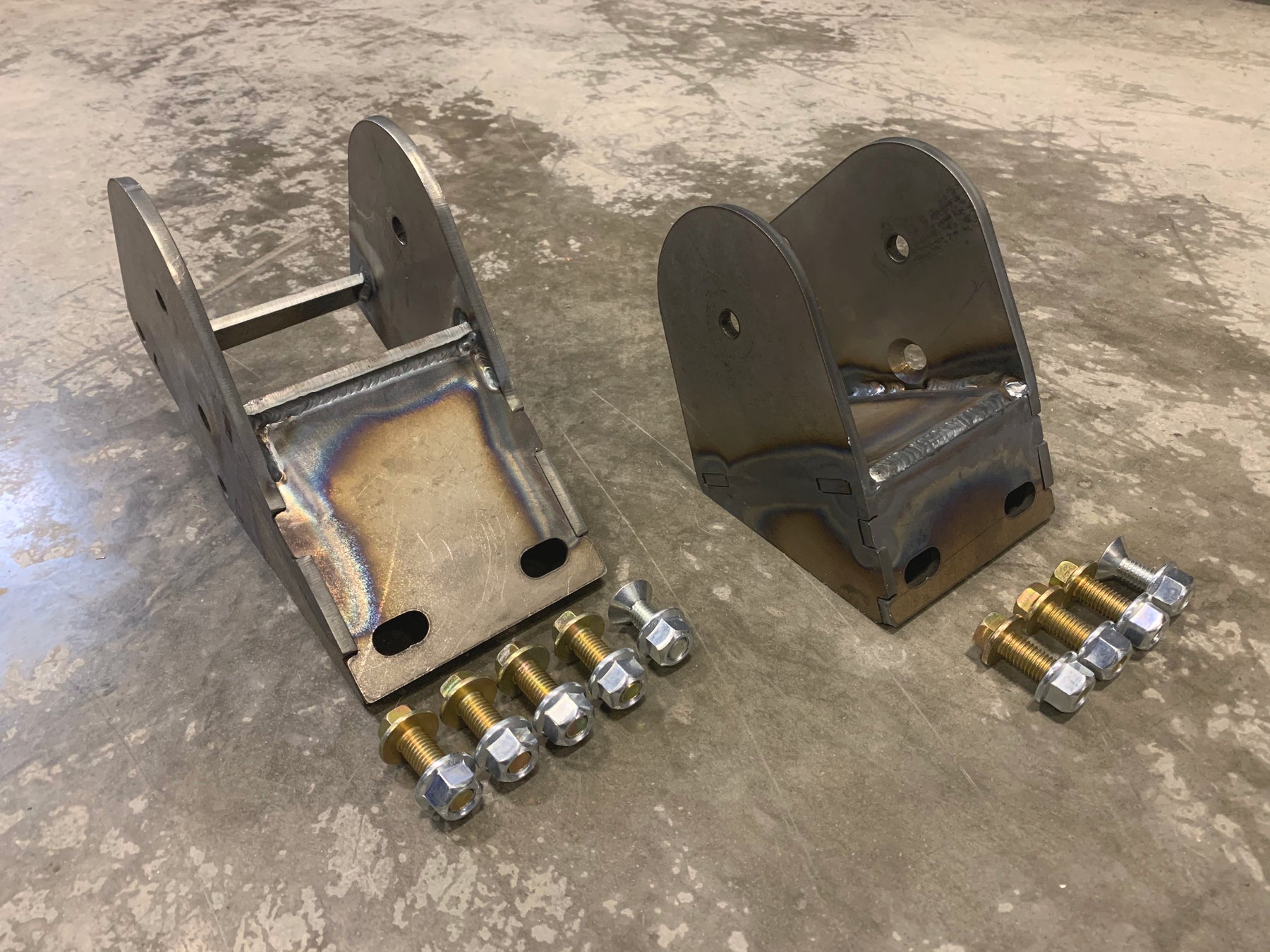

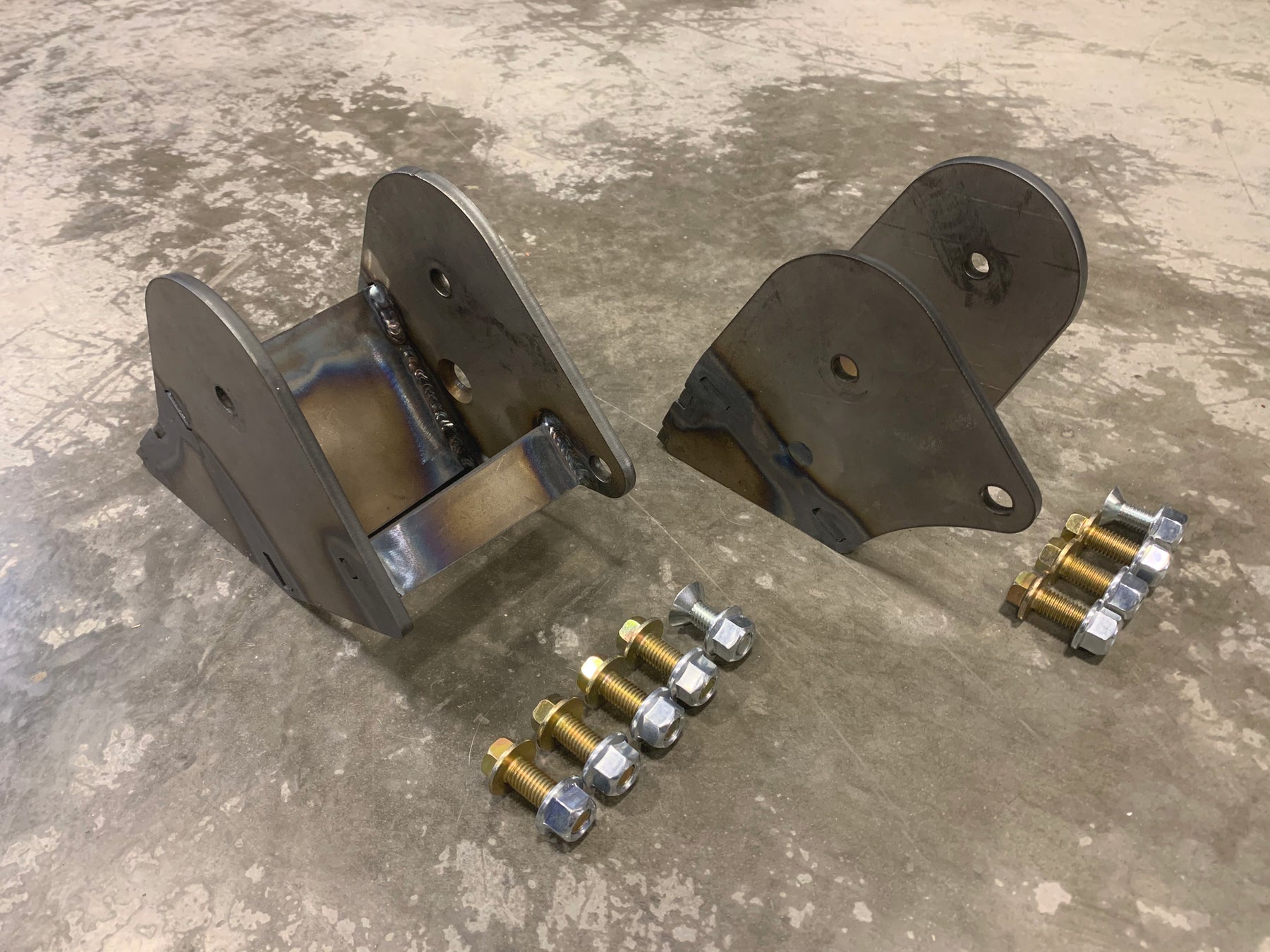

- Fully Assembled
- Welded together and ready to bolt-in.
- Come with all the steel plates and fasteners and you weld them together yourself.
These motor mounts require you to "massage" the firewall in order to allow the engine to sit far enough back to utilize the factory, mechanical fan. This is standard with most OBS Ford Cummins conversion motor mounts.
*Motor mount bushings not included*

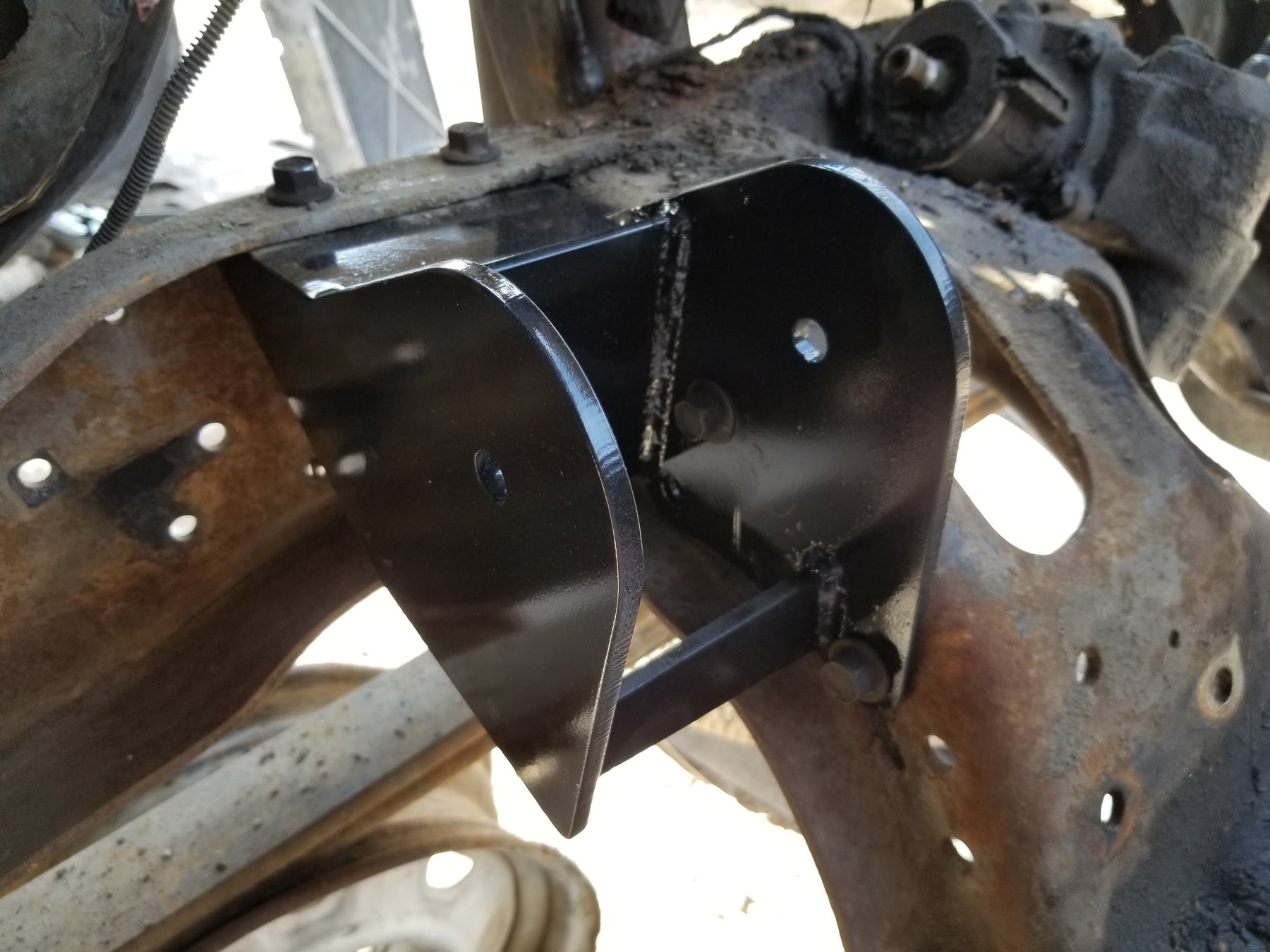

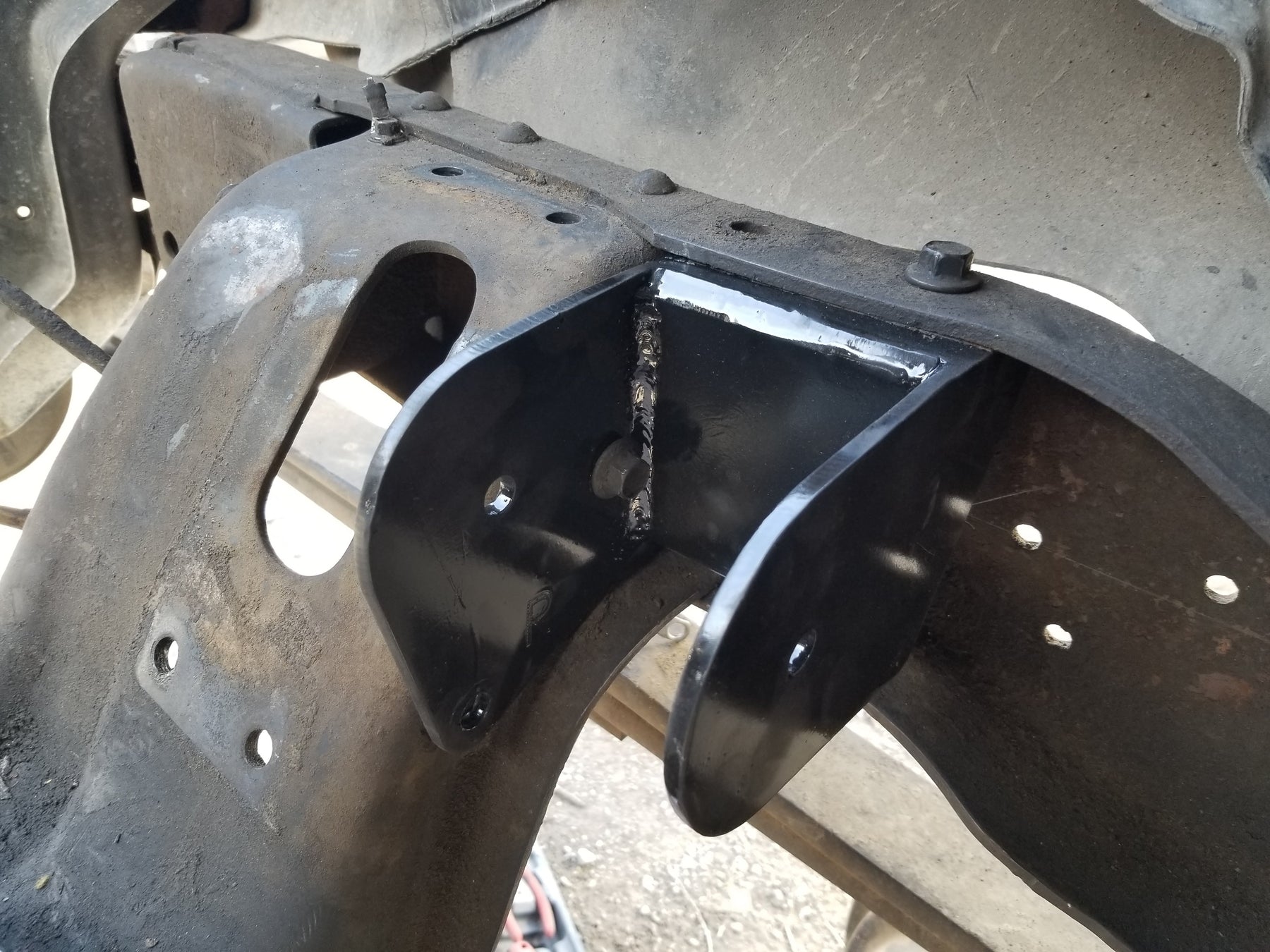

- Frame side motor mount brackets (Assembled or DIY)
- All hardware needed to bolt the motor mounts to the frame
Made in the USA.
*Unfortunately and fortunately, we are not Amazon. We create all custom parts and that takes time. Please expect up to 7-10 business day processing time.
**Steering kits are currently running 2+months behind due to COVID impacting supply chain issues.
Ships UPS Ground. Please expect 10 business days to process your order and get it shipped out.
